MagSlim IMU Dual Navigation System
- 83 mm / 3.27’’ Ultra-Slim Design
- Mesh Grid™ No Spots Missed
- Customizable Room Cleaning
- 52 dB Quiet Clean

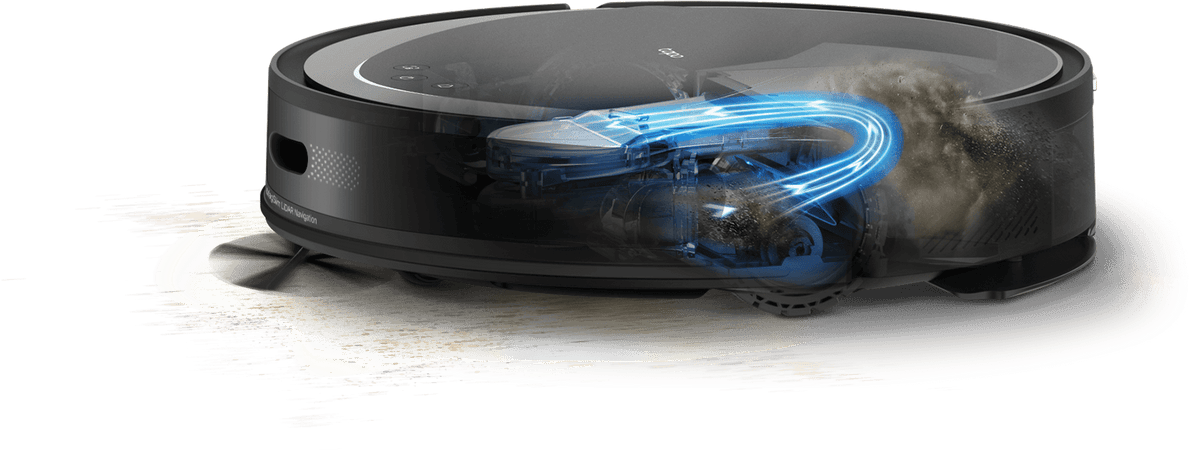

DeepVac for Better Dust Removal
Dust-Free, Stress-Free
- DeepVac tech allows smoother dust flow to enhance dust removal efficiency on various floors

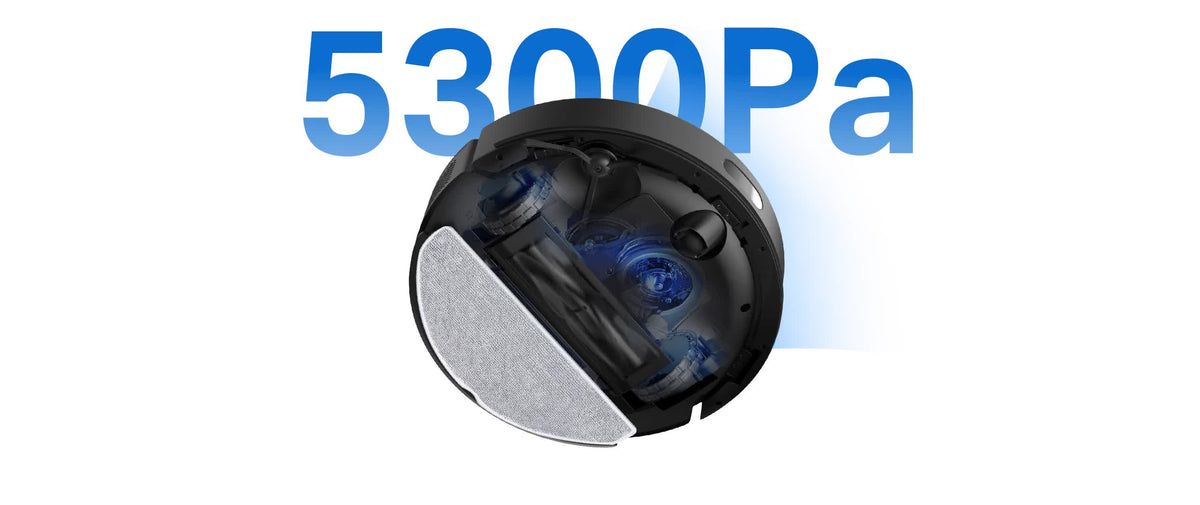

- 5300Pa Hyper Suction
- Mesh Grid No Spots Missed
- Customizable Carpet Preferences
Tapo IQ+ Smart Cleaning
- Furniture-Focused Cleaning
- Smart Obstacle Avoidance
- Smart Recharge and Resume
- Anti-Drop Protection
- Fast Smart Mapping
- Self-Planning Cleaning Routes
Moves Freely, Cleans Thoroughly
- MagSlim™ LiDAR Navigation lowers the robot's height, enabling it to clean in hard-to-reach areas where dirt hides.
High-Precision Mapping
- Maps out your house in minutes with millimeter-level detection precision, avoiding omissions and repeated cleaning.
Care and Maintenance
- To maintain optimal performance, maintain the robot vacuum according to the following guidelines.
|
Part |
Maintenance Frequency |
Replacement Frequency* |
|
Dustbin |
Clean/wash as needed |
/ |
|
Filter |
Once a week |
3-6 months |
|
Main Brush |
Every 2 weeks |
6-12 months |
|
Main Brush Cover |
Every 2 weeks |
6-12 months |
|
Side Brush |
Once a month |
3-6 months |
|
Mop Cloth |
After each use |
2-3 months |
|
Caster Wheel |
Clean as needed |
/ |
|
Main Wheels |
Once a month |
/ |
|
Sensors |
Once a month |
/ |
|
Charging Contacts |
Once a month |
/ |
*Replacement frequency may vary depending on the actual situation. Parts should be replaced if visible wear appears.
Mapping & Navigation Features
- Mapping/Path Planning: MagSlim™ + IMU Dual Navigation
- High-Precision Map: Yes
- Obstacle Avoidance: Infrared
- Barrier-Cross Height: 22 mm/0.87 in
-
Anti-Drop Protection : Yes
Vacuuming Features - Max Suction Power: 5300 Pa
- Suction Level Adjustment: 5 levels
- Dustbin Capacity: 300 ml
- Dustbin Detection: Yes
- HEPA Filter: H11
- Carpet Boost: Yes
-
Noise: 52dB (Quiet mode), 55 dB (Default/Standard)
Mopping Features - Wet Mopping : Yes
- Mopping Type: Electric Water Flow Control
- Water Level Adjustment: 3 levels
-
Water Tank Capacity: 300 ml
Battery - Battery Capacity : 2600 mAh
- Vacuum Max Battery Life: 180 min per charge (Quiet Mode)
-
Recharge & Resume: Yes
App Features - Real-Time Tracking: Yes
- Multi-Floor Mapping: Yes
- Scheduled Cleaning: Yes
- Virtual Walls: Yes
- No-Go Zones: Yes
-
Zone Cleaning: Yes
Physical -
Product Dimensions:
Robot Vacuum: Φ330 × 83 mm (Φ13 × 3.3 in) -
Package Contents:
Robot Vacuum Cleaner ×1 (Includes HEPA Filter x1 and Side Brush x1) Charging Dock ×1
Mopping Attchament ×1
Power Cord ×1
Cleaning Brush ×1
User Manual
Others
-
Wireless Connection:
IEEE 802.11 b/g/n, 2.4 GHz band only; Bluetooth 4.2 (only for onboarding) - Rated Input Voltage: 100-240 VAC, 50/60 Hz
- Max Charging Power Consumption: 10 W (DC20 V 500 mA) / 9.5W (DC19 V 500 mA)
- Max Working Power Consumption: Robot Vacuum: 45 W
- Works with Google Home: Yes
- Works with Amazon Alexa: Yes
Power/Clean
- Press and hold for 3 seconds: Turn on/off the robot vacuum.
- Press once: Start/pause cleaning.
Dock
- Return to the dock to charge.
-
Empty the dustbin when docked.
Spot Cleaning/Child Lock - Press once: Start spot cleaning.
-
Press and hold for 5 seconds: Turn on/off the child lock.
Combo Button
- Press and hold simultaneously for 5 seconds: Enter setup mode to configure the network.
-
Press and hold simultaneously for 10 seconds:
Restore to factory default settings.
LED
- Red: Battery level < 20%; Error
- Orange: Battery level between 20% and 80%
- Green: Battery level > 80%
LiDA , Sensor , Recharge Sensor , Bumper , Dustbin + Water Tank , Anti-Drop Sensors , Cover , Recharge Sensor , Charging Contacts , Rubber Plug , Do NOT add any cleaning agents , Wipe the water tank dry after adding water. , Filter Latch Dustbin Latch , Water Tank Latch , ide Brush , Battery , Compartment , Wheel , Caster Wheel , Wheel Main Brush , Main Brush Cover Latch , HEPA Filter , Add Water Open Dustbin Open Lid , Charging Contacts , Charging Dock
Based on internal testing by Tapo Lab. Actual results are subject to change due to the usage and environmental factors.
Testing is conducted by Tapo Lab using Tapo RV20 Max compared to Tapo RV20 Mop on rough wood floors. Actual results may vary according to the home environment. Specifications are subject to change without notice. All brands and product names are trademarks or registered trademarks of their respective holders.
@2024 TP-Link Robot Vacuum & Mop Tapo RV20 Max
