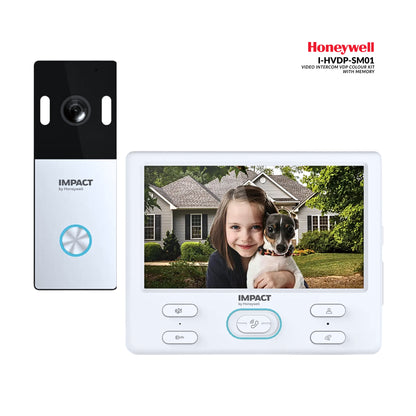

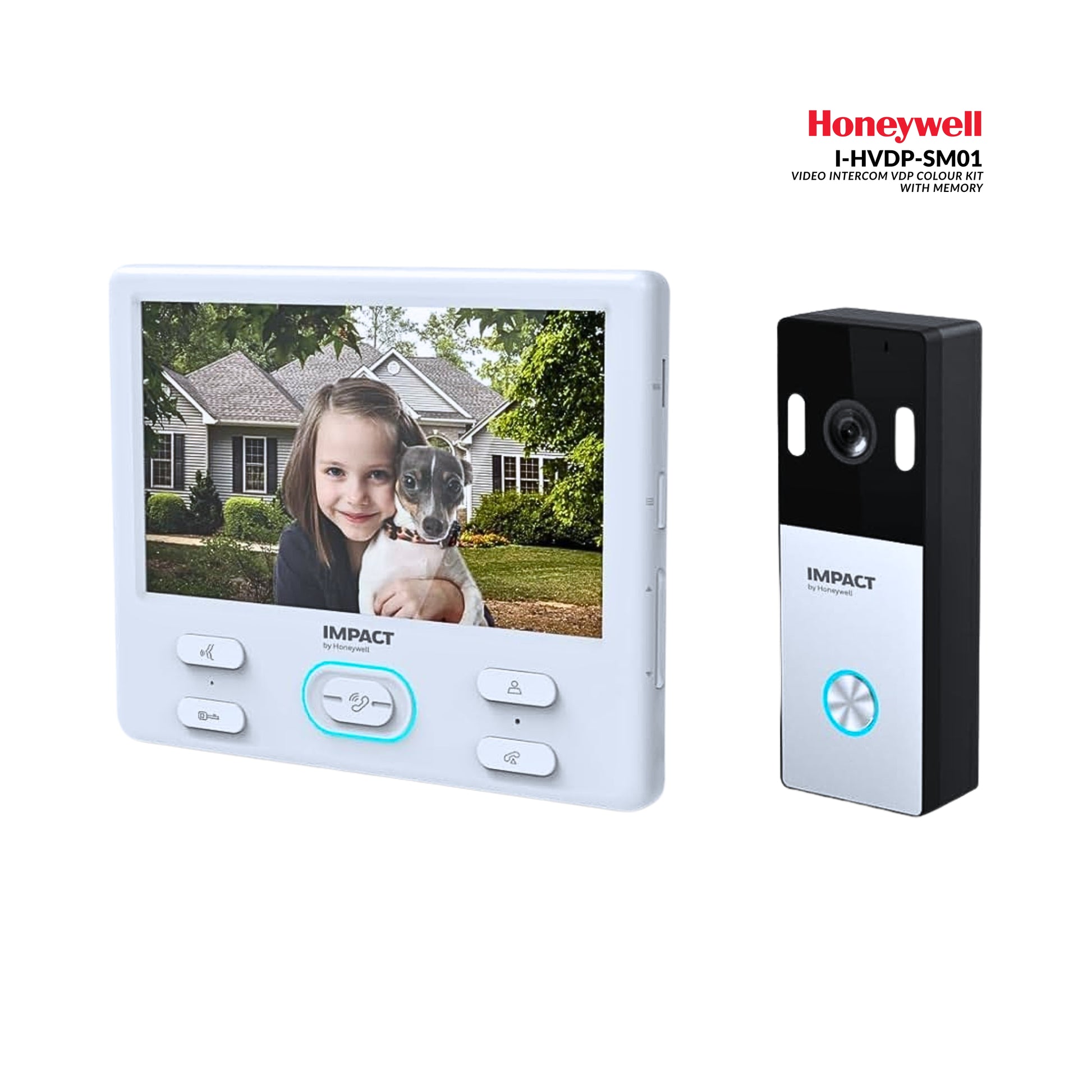

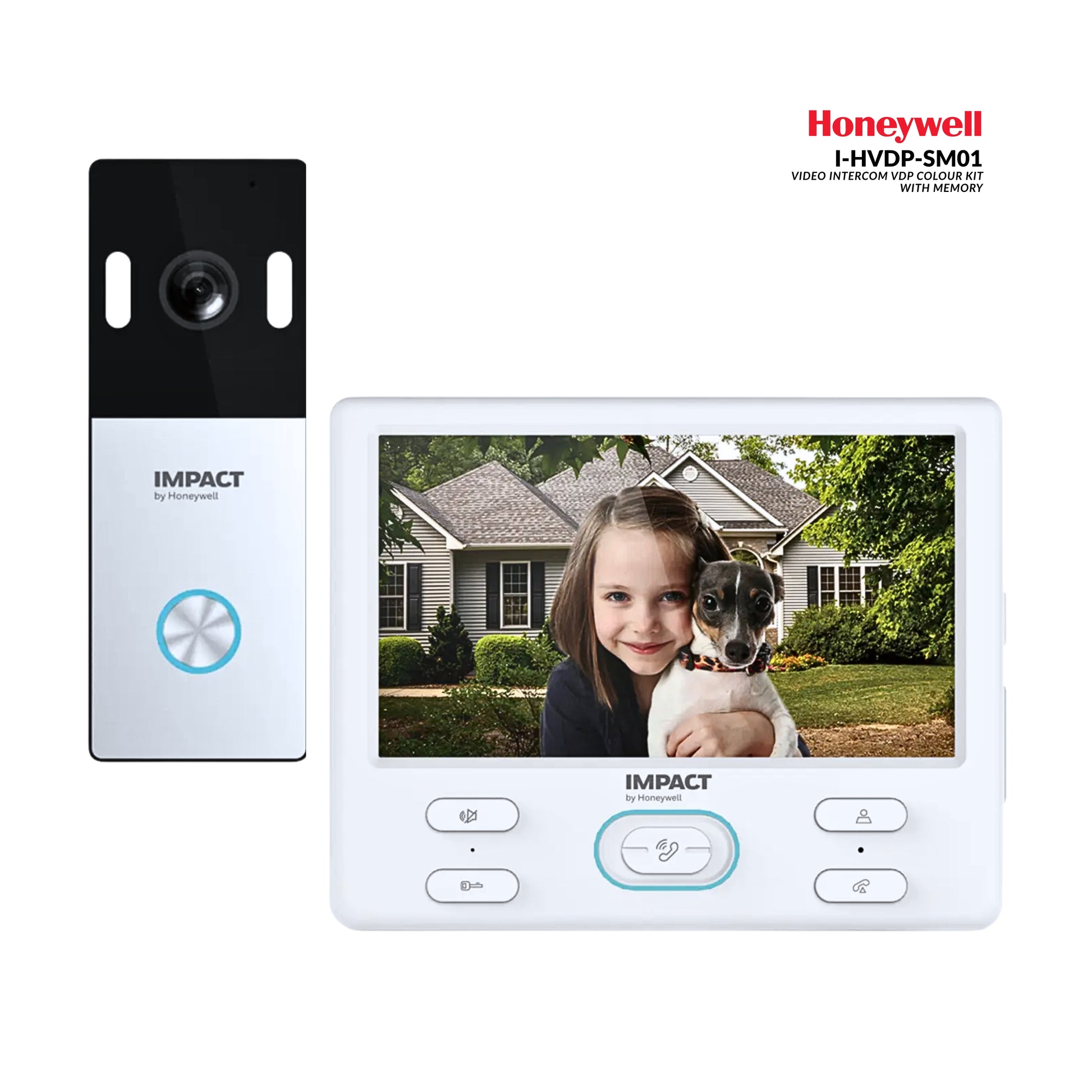

Honeywell Impact I-HVDP-SM01 7” Video Intercom VDP Colour Kit with Memory
Honeywell Impact I-HVDP-SM01 7” Video Intercom VDP Colour Kit with Memory
Couldn't load pickup availability
Video
Description
Description

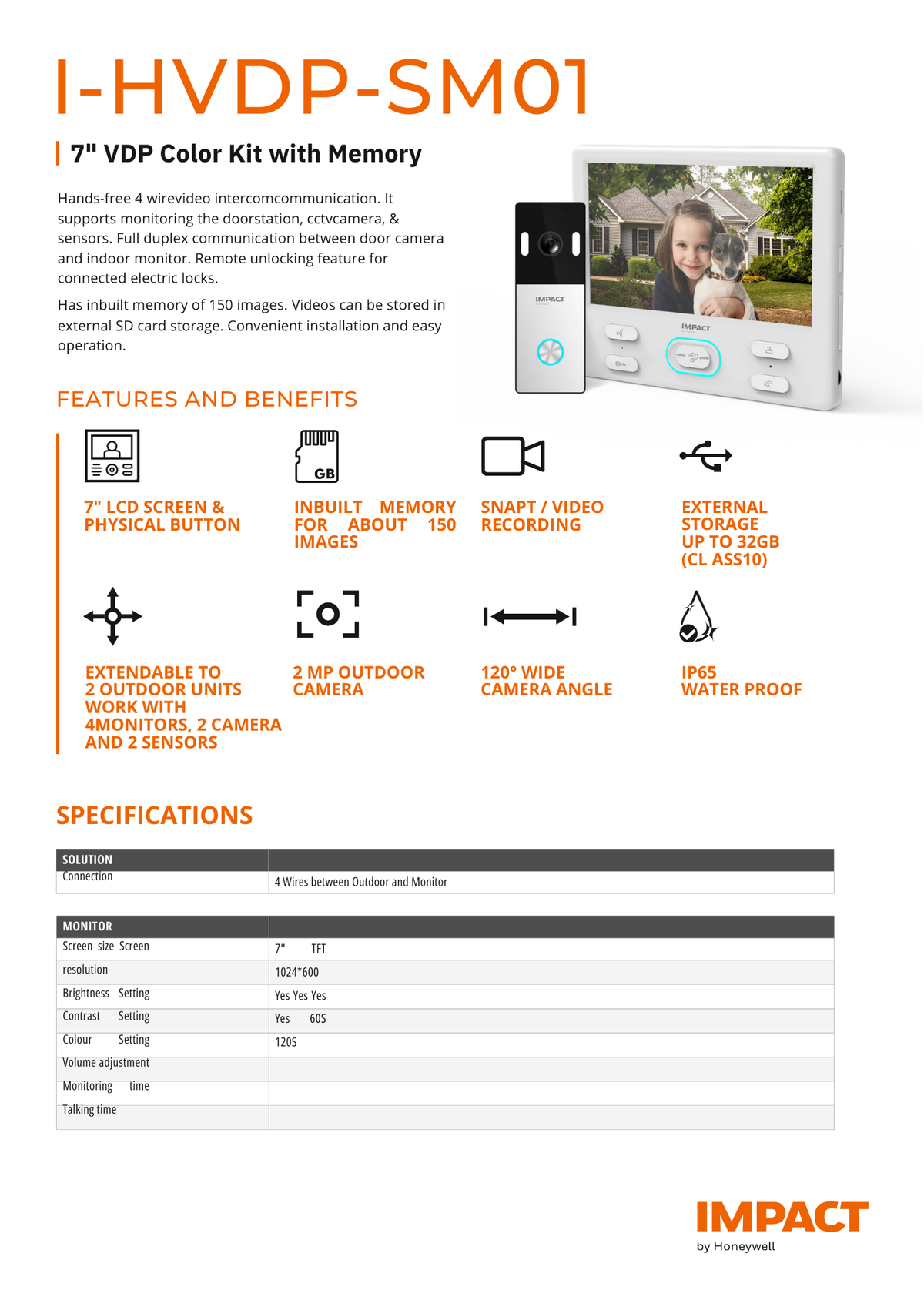

SPECIFICATIONS
|
SOLUTION |
|
|
Connection |
4 Wires between Outdoor and Monitor |
|
MONITOR |
|
|
Screen size |
7" TFT |
|
Screen resolution |
1024*600 |
|
Brightness Setting |
Yes |
|
Contrast Setting |
Yes |
|
Colour Setting |
Yes |
|
Volume adjustment |
Yes |
|
Monitoring time |
60S |
|
Talking time |
120S |
 |
 |
|
|
|
|
Power Adapter |
DC14.5V 1A |
|
Working consumption |
Standby <3W, Working <10W |
|
BASIC |
|
|
External SD Card Support |
Yes (Max.32GB class 10) |
|
Image Storage |
Yes |
|
Image Storage Capacity |
Built in memory for 150 Images |
|
Video Storage |
Yes |
|
Video Storage Capacity |
Yes (Based on SD card) |
|
Video Length |
Yes |
|
Intercom and Call transfer |
Yes |
|
Detection |
Press detection |
|
Language |
English |
|
EXTENSION |
|
|
Indoor Monitors |
4 (1+3) |
|
Outdoor unit |
2 (1+1) |
|
External CCTV Support |
2 (CVBS) |
|
External Security Sensor |
2 |
|
TV Output Support |
Yes |
|
OUTDOOR UNIT |
|
|
Camera type |
Common wide angle camera |
|
Door Lock Release |
NO, COM, NC or E-lock |
|
Camera sensor |
CMOS |
|
Camera resolution |
2MP |
|
Viewing Angle |
120° (Diagonal) |
|
Night Vision |
IR LED |
|
Mount |
Surface mount |
|
MIC & Speaker volume |
Adjustable |
|
ENVIRONMENT |
|
|
Termperature |
-10℃~+50℃ |
|
Humidity |
≤80% |
|
Waterproof |
IP65 |
|
GENERAL |
|
|
Monitor size(L*W*H)mm |
182*145*18.0 |
|
Outdoor unit size(L*W*H)mm |
50.5*136.5*28 |
|
Assessory |
Monitor*1pcs, Outdoor unit*1pcs, Adapter*1pcs, Mounting bracket*1pcs, Angular bracket, User manual* 1pcs |
