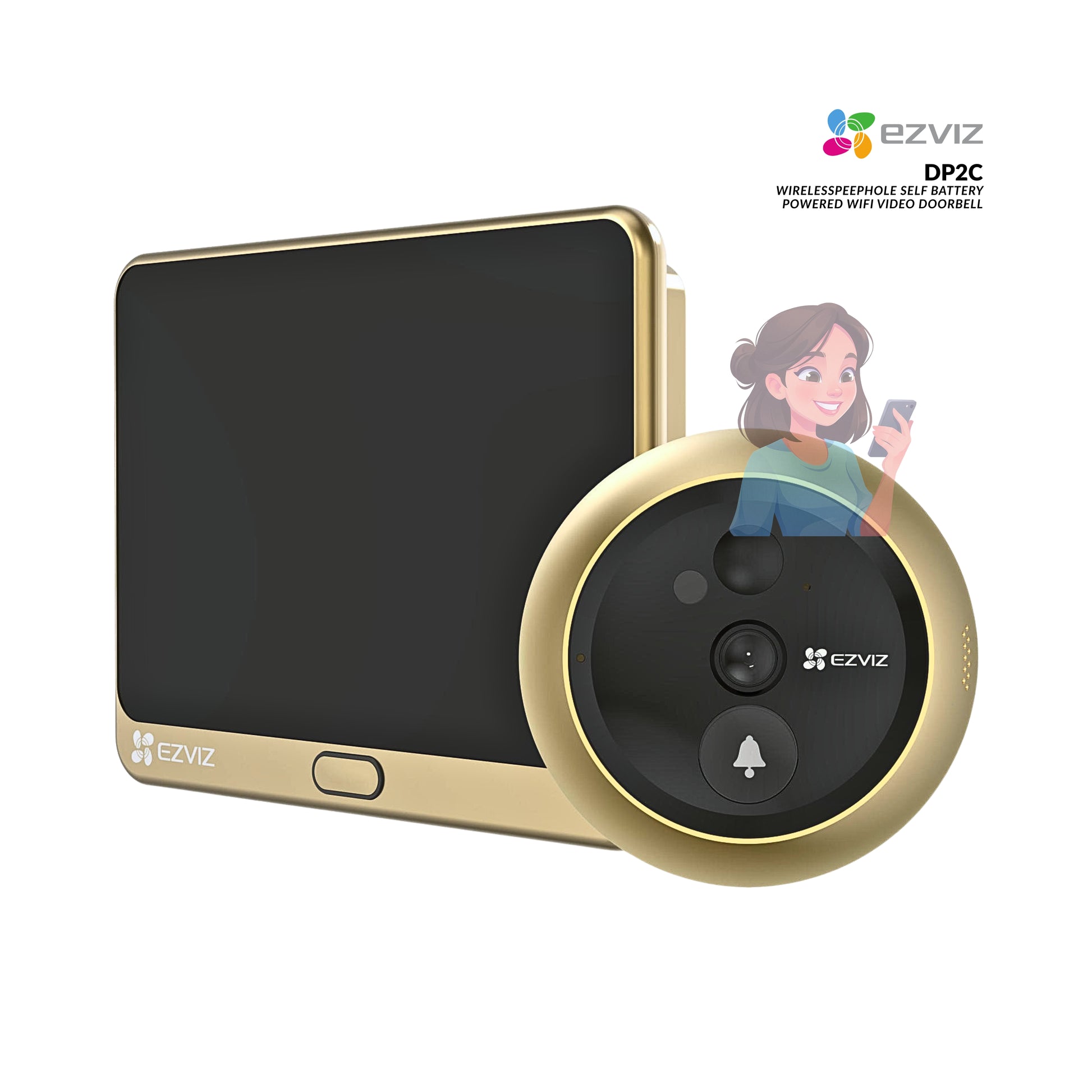

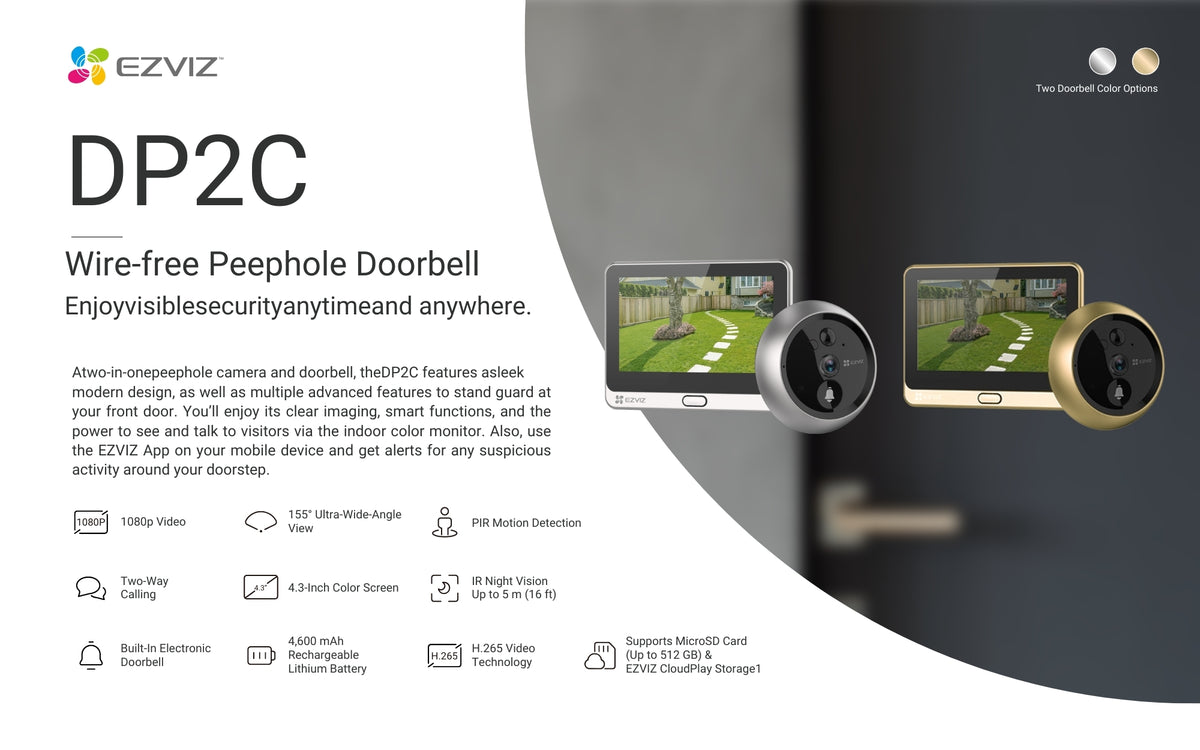

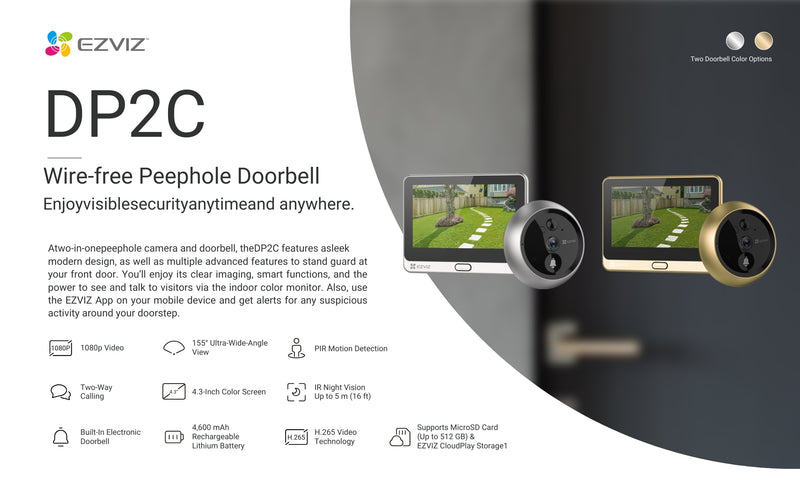

Ezviz DP2C WirelessPeephole Self Battery Powered WiFi Video Doorbell

DP2C

Wire-free Peephole Doorbell

Enjoy visible security anytime and anywhere.

A two-in-one peephole camera and doorbell, the DP2C features a sleek modern design, as well as multiple advanced features to stand guard at your front door. You’ll enjoy its clear imaging, smart functions, and the power to see and talk to visitors via the indoor color monitor. Also, use the EZVIZ App on your mobile device and get alerts for any suspicious activity around your doorstep.

Two Doorbell Color Options

1080P

1080p Video 155° Ultra-Wide-Angle View

PIR Motion Detection

Two-Way Calling

Built-In Electronic Doorbell

4.3-Inch Color Screen

4,600 mAh

Rechargeable Lithium Battery

IR Night Vision Up to 5 m (16 ft)

H.265

H.265 Video Technology

Supports MicroSD Card (Up to 512 GB) &

EZVIZ CloudPlay Storage

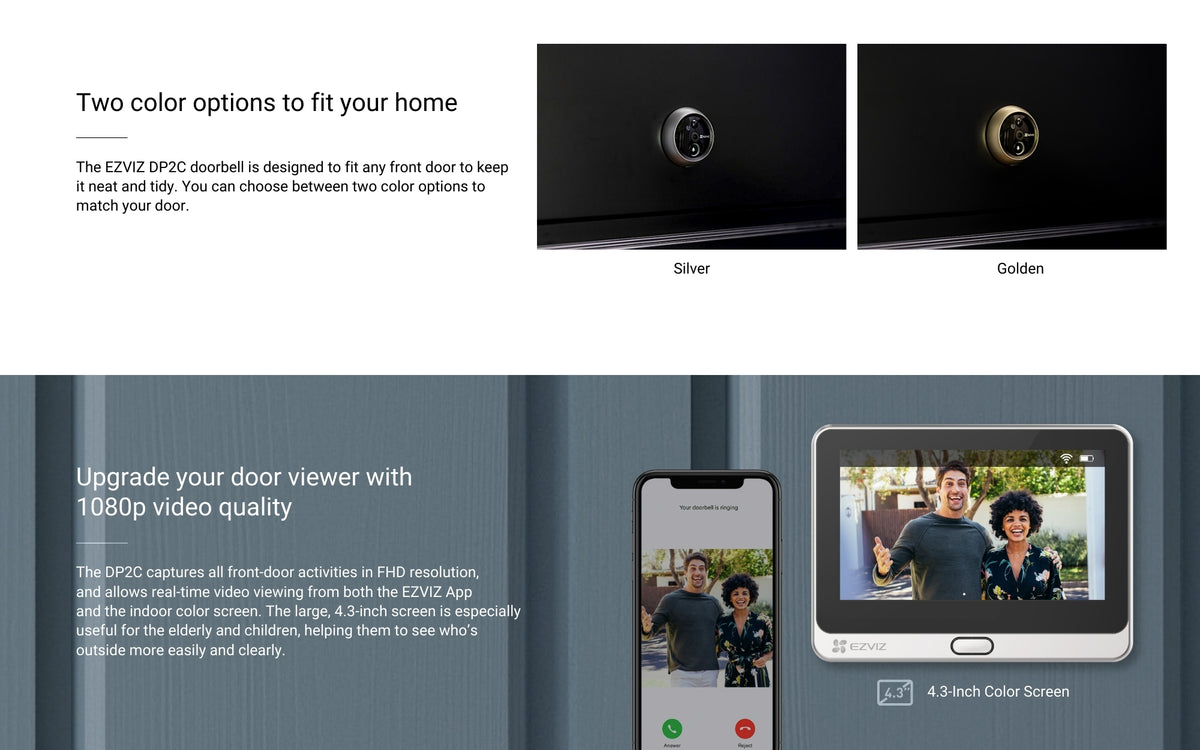

Two color options to fit your home

The EZVIZ DP2C doorbell is designed to fit any front door to keep it neat and tidy. You can choose between two color options to match your door.

Silver Golden

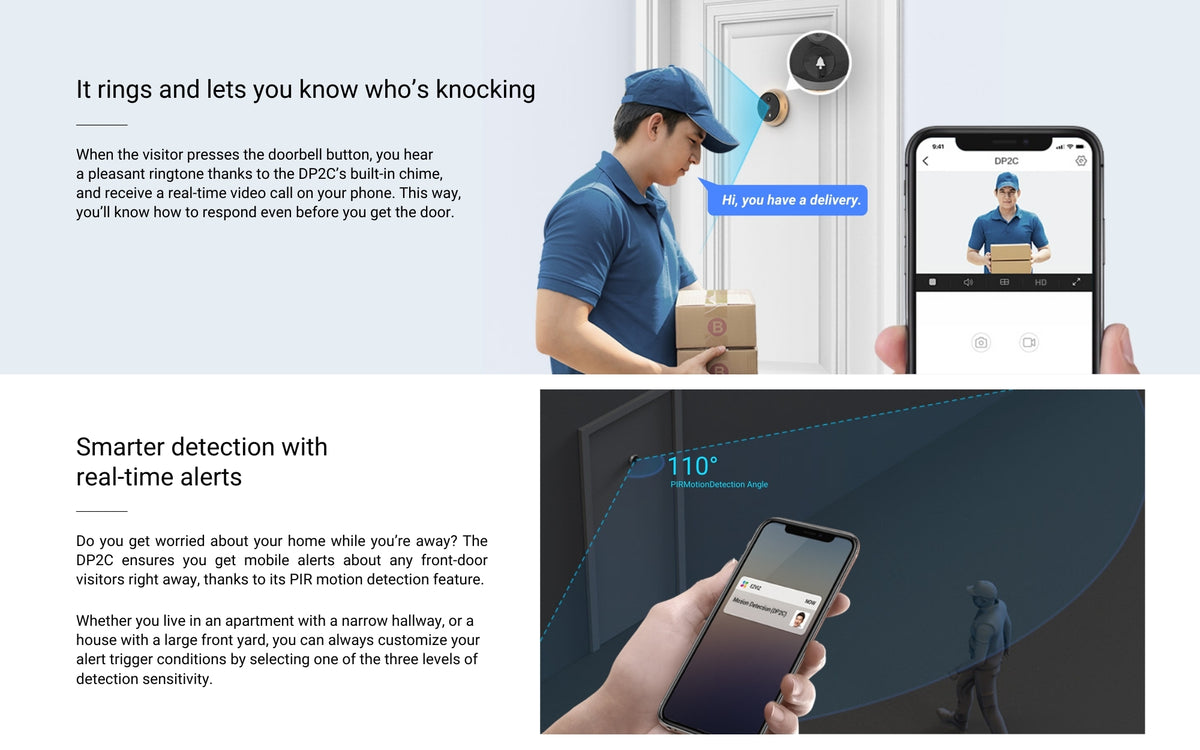

It rings and lets you know who’s knocking

When the visitor presses the doorbell button, you hear a pleasant ringtone thanks to the DP2C’s built-in chime,

and receive a real-time video call on your phone. This way, you’ll know how to respond even before you get the door.

Smarter detection with real-time alerts

Do you get worried about your home while you’re away?

The DP2C ensures you get mobile alerts about any front-door visitors right away, thanks to its PIR motion detection feature.

Whether you live in an apartment with a narrow hallway, or a house with a large front yard, you can always customize your alert trigger conditions by selecting one of the three levels of detection sensitivity.

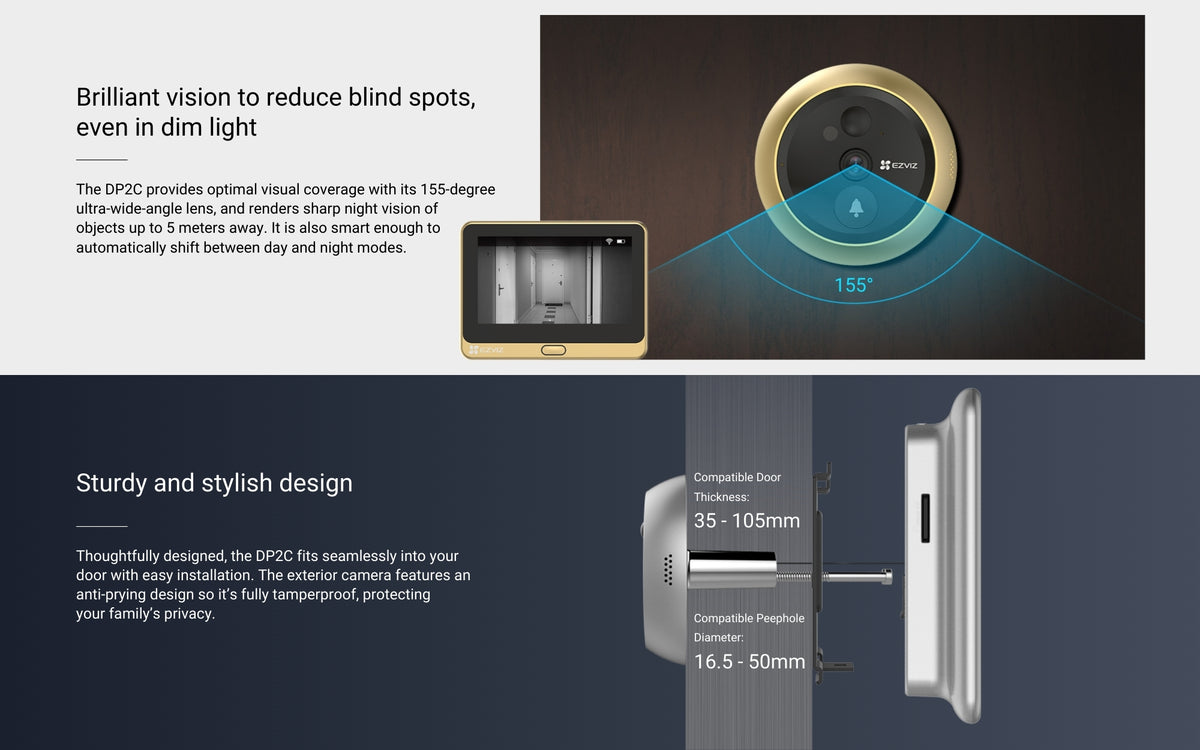

Brilliant vision to reduce blind spots, even in dim light

The DP2C provides optimal visual coverage with its 155-degree ultra-wide-angle lens, and renders sharp night vision of

objects up to 5 meters away. It is also smart enough to automatically shift between day and night modes.

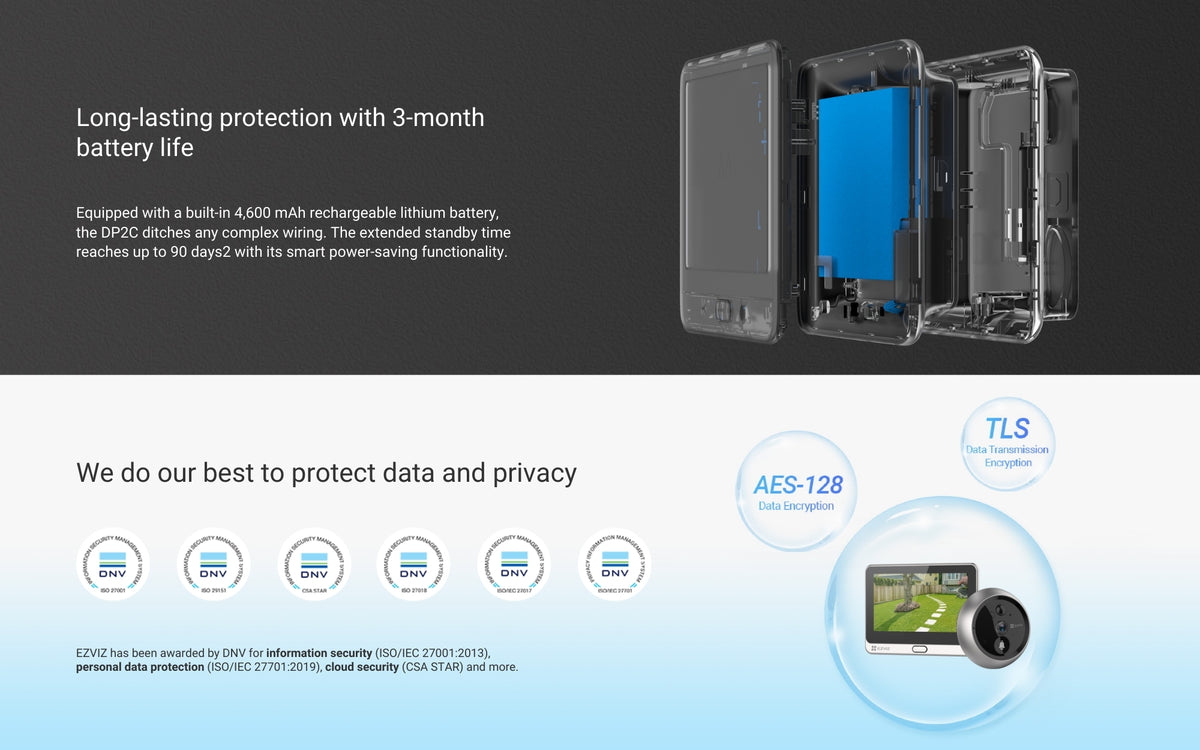

We do our best to protect data and privacy

EZVIZ has been awarded by DNV for information security (ISO/IEC 27001:2013),

personal data protection (ISO/IEC 27701:2019), cloud security (CSA STAR) and more.

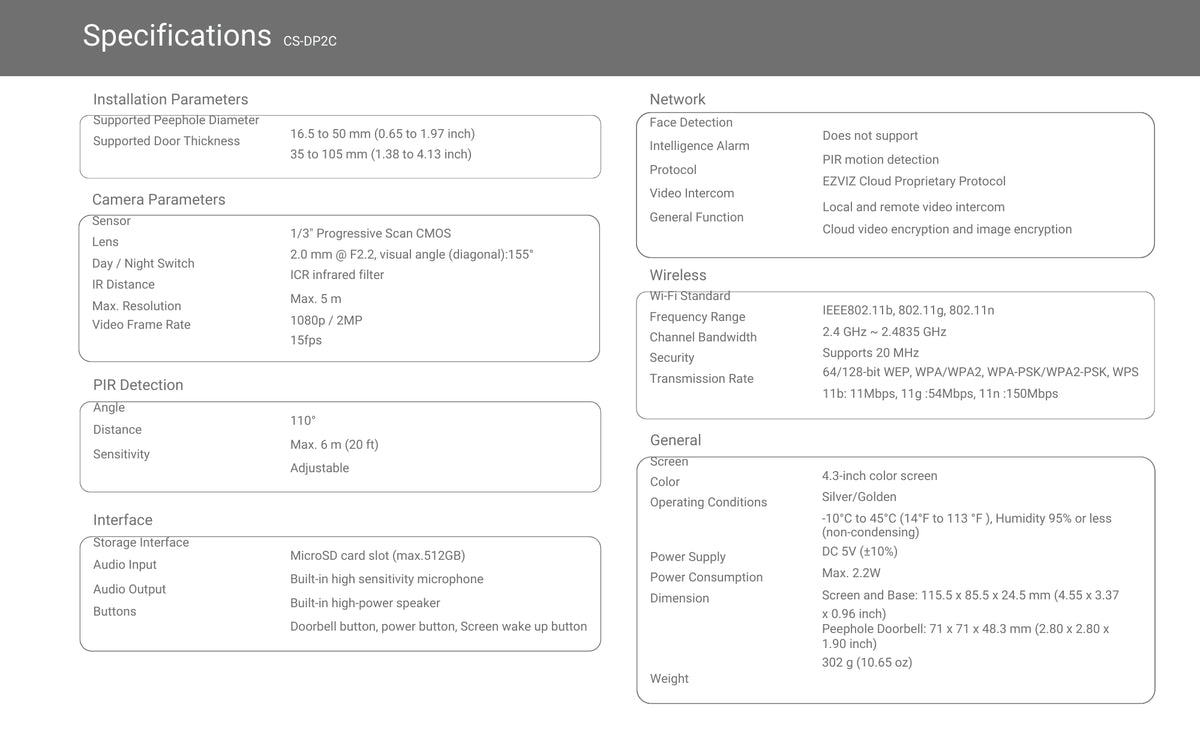

1. Installation Parameters Network

   Supported Peephole Diameter

   Supported Door Thickness

   16.5 to 50 mm (0.65 to 1.97 inch)

   35 to 105 mm (1.38 to 4.13 inch)

   Face Detection Intelligence Alarm Protocol

   Video Intercom

   General Function

   Does not support PIR motion detection

   EZVIZ Cloud Proprietary Protocol

   Local and remote video intercom

   Cloud video encryption and image encryption

   Camera Parameters

   Sensor Lens

   Day / Night Switch IR Distance

   Max. Resolution

   Video Frame Rate

   1/3" Progressive Scan CMOS

   2.0 mm @ F2.2, visual angle (diagonal):155° ICR infrared filter

   Max. 5 m

   1080p / 2MP

   15fps

   Wireless

   Wi-Fi Standard Frequency Range Channel Bandwidth Security

   Transmission Rate

   IEEE802.11b, 802.11g, 802.11n

   2.4 GHz ~ 2.4835 GHz

   Supports 20 MHz

   64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

   11b: 11Mbps, 11g :54Mbps, 11n :150Mbps

   PIR Detection

   Angle Distance

   Sensitivity

   110°

   Max. 6 m (20 ft) Adjustable

   General

   Screen Color

   Operating Conditions

   Power Supply Power Consumption

   Dimension

   4.3-inch color screen Silver/Golden

   -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less

   (non-condensing) DC 5V (±10%) Max. 2.2W

   Screen and Base: 115.5 x 85.5 x 24.5 mm (4.55 x 3.37

   x 0.96 inch)

   Peephole Doorbell: 71 x 71 x 48.3 mm (2.80 x 2.80 x

   1.90 inch)

   Weight

   302 g (10.65 oz)

   Interface

   Storage Interface Audio Input Audio Output

   Buttons

   MicroSD card slot (max.512GB) Built-in high sensitivity microphone Built-in high-power speaker

   Doorbell button, power button, Screen wake up button

   Specifications CS-DP2C

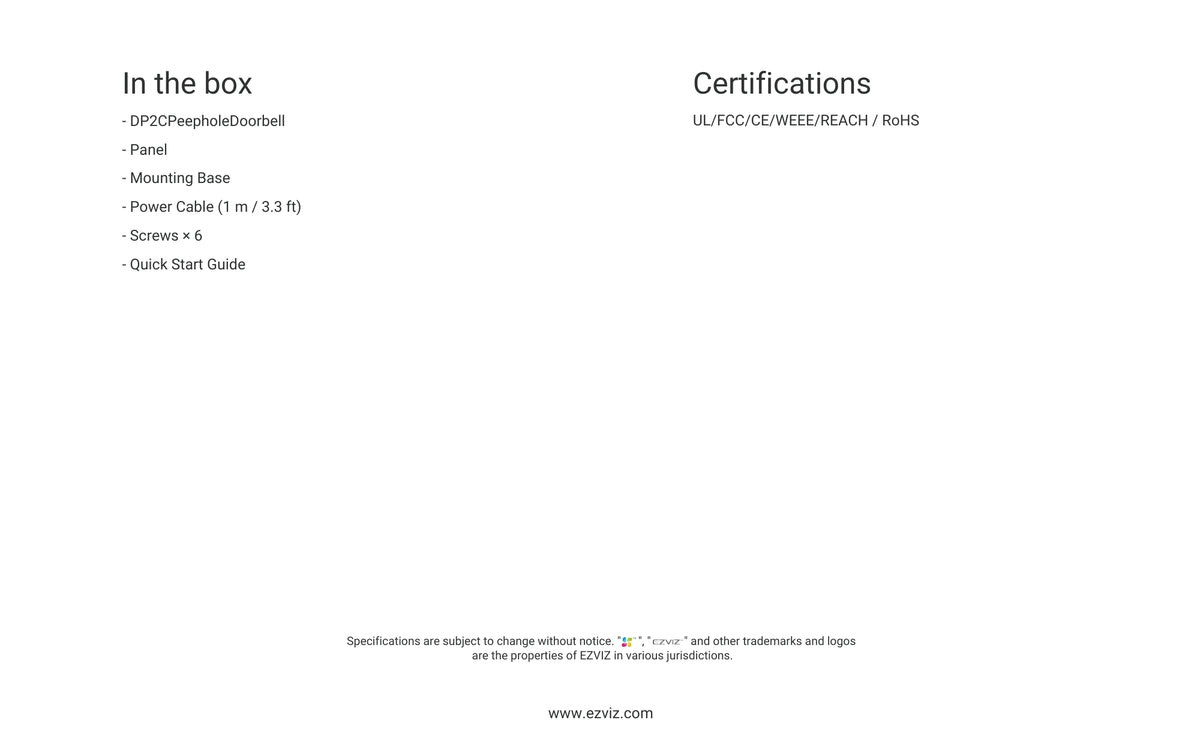

   In the box

   • DP2C Peephole Doorbell

   • Panel

   • Mounting Base

   • Power Cable (1 m / 3.3 ft)

   • Screws × 6

   • Quick Start Guide

Certifications

UL / FCC / CE / WEEE / REACH / RoHS
